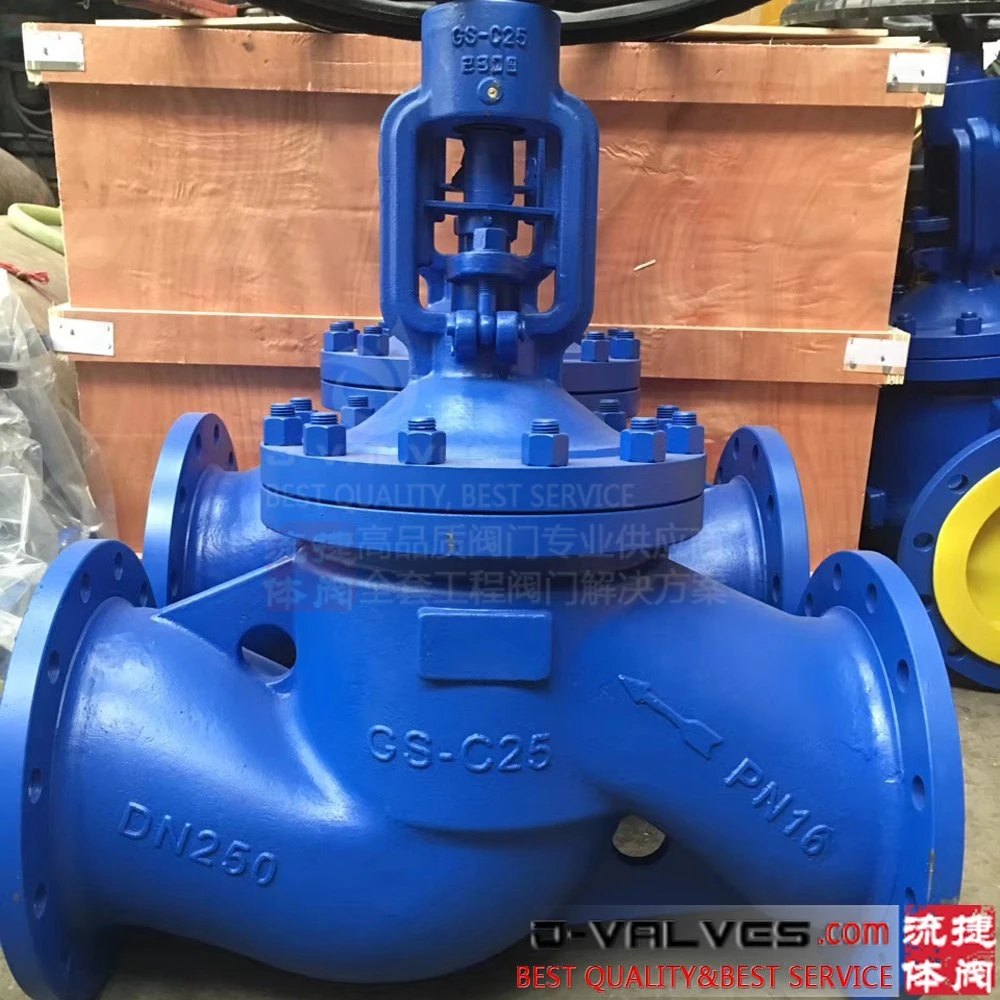

1.Cast Iron/Cast Steel Pn16 Steam Bellow Seal Water Globe Valve Price Product Specifications:
- Size: DN15-DN600
- Pressure rating: PN16/PN40/PN63
- Material: GS-C25 1.0619, 1.4308, 1.4408, 1.7380, 1.7706 etc.
- Suitable Temperature: -30ºC~350ºC(Different temperature choose different materials)
- Suitable Medium: Water, Steam, Oil and natural gas and other causticity medium (Different raw material for different medium)
2.Cast Iron/Cast Steel Pn16 Steam Bellow Seal Water Globe Valve Price Technical Specifications:
- Design & Manufacture standard: DIN 3356
- Pressure & Temperature standard: DIN3230
- Face to face dimension standard: DIN3202
- Flange standard: DIN2543-2545, DIN 2501
- Butt welding standard: DIN3239
- Test & Inspect: DIN3230
3.Cast Iron/Cast Steel Pn16 Steam Bellow Seal Water Globe Valve Price Product Features:
- Bolted bonnet, lift stem design.
- Bellows & packing double seal design to make sure zero leakage of stem. If the bellows don't work, the packing also could avoid leakage, which is suitable for flammable and explosive medium in pipeline.
- Flexible graphite packing for dependable sealing performance, and the material of bellows is stainless steel or Inconel.
- The disc use taper design, which let the sealing surface & medium to become streamline form, and make the sealing performance is better.
- There is a fat joint on the bonnet. It can grease to stem, nut & shaft sleeve directly.
- Stem nut uses aluminum bronze material. Large valve is provided with thrust bearing to make it opened easily & flexibly.
- High temperature valve is used cone hard seal, which could make valve zero leakage of air-tight seal.
- The parts materials, flange & weld sizes of valves are decided reasonably according to real operating conditions or customers' requirements to reach various needs of projects.
- Operation: Gear/Worm wheel, Pneumatic actuator and Electric actuator.
4.Cast Iron/Cast Steel Pn16 Steam Bellow Seal Water Globe Valve Price Specifications:
|Product Name||DIN Cast Steel/Cast Iron Flange End Bellows Sealed Globe Valves|
|1. Material||SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc|
|2. Size||2''~48'' ( DN50~DN1200)|
|3. Thread standard||ISO9001 & CE, TS|
|4. Port||Full Port|
|5. Working Pressure||150LB/300LB/600LB/900LB/1500LB|
|6. Connection Ends||RF, RTJ, FF, Butt-welding.|
|7. Working Temp.||-29~425ºC, or according to customer requirements for different industry.|
|8. Suitable Medium||Water, Natural Gas, Oil and some corrosive liquid|
|9. Operated||Gear Operated, Pneumatic Actuator, Electric Actuator.|
|10. Inspection & Testing||According to API598|
|Delivery Time||15~20 Days|
|Package||Standard Exporting Plywood Case|
|Shipping Port||Ningbo/Shanghai, China|
|Shipping Terms||Exw, FOB, CFR, CIF, etc.|
|Payment Terms||T/T, Western Union, PayPal, etc.|
|30% prepayment, 70% balance paid before shipping or against copy of BL|
|Country of Origin||Wenzhou city, China|
|Production Capacity||6000 ton/year|
DIN Cast Steel/Cast Iron Flange End Bellows Sealed Globe Valves can be operated by pneumatic actuator,electric actuator,intelligent control head and manual operation.There are a variety of standards provided to customers,such as,DIN,API,ANSI,and so on
5.DIN Cast Steel/Cast Iron Flange End Bellows Sealed Globe Valves Product Application:
Products are widely used in water treatment chemical, natural gas and oil and other industries. Technology to reach the international leading level, provide process design, machinery manufacturing, installation, technical training. Professional high quality valve supplier, complete engineering valve solution.
|On Samples||Buyer bear the air fee, but this fee will be reduced from order directly|
|On After Sales||Free replacement if there is any quality problem|
|On Delivery||Never delay delivery time|
|On Materials||Ensure material pure|
|Ensure material pure||Welcome|
J-VALVES Company Information:
J-VALVES Packing Shipping:
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 2''-48''(DN50-DN1200), it request the MOQ is 50pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.
A4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture API,DIN,GOST,JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.
