Cusn8 bronze bush bearing manufacturer FB092 bronze plain bearing

BRONZE WRAPPED BEARINGS These bearings are wrapped from a cold formed homogenous bronze (CuSn8), which can achieve exceptional material properties. According to various lubrication conditions, we can provide diamond shaped lubrication indents (grease) and incorporate holes (oil), these designs can rapidly build up a lubrica

Featured Products

Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing

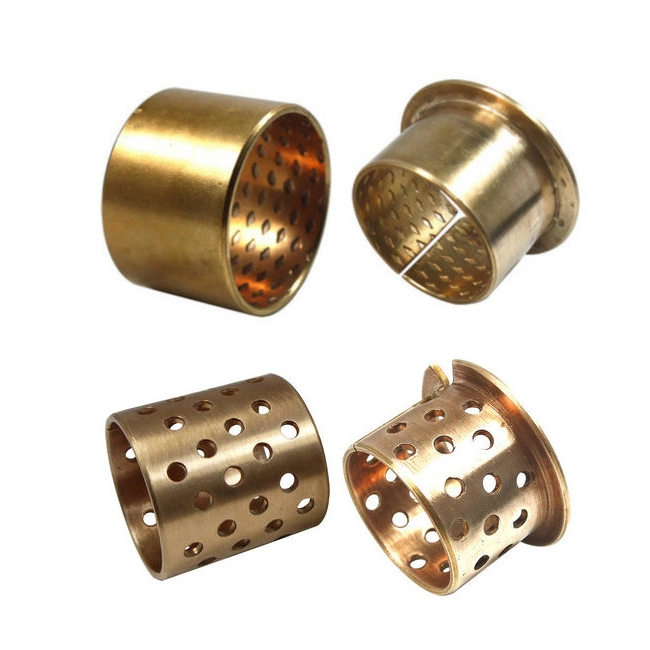

BRONZE WRAPPED BEARINGS
 These bearings are wrapped from a cold formed homogenous bronze (CuSn8), which can achieve exceptional material properties. According to various lubrication conditions, we can provide diamond shaped lubrication indents (grease) and incorporate holes (oil), these designs can rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction.

Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing

FB090 This type of bronze bearing is made of particular formulation with high specific gravity and its surface can be incorporated with spherical or diamond shaped indentations or oil grooves based on customers requirements.

It is high load capacity and long life. Compared with traditional cast bronze bushing, it is more cheap and more compact. It is widely used in hoisting machines, construction machines, automobiles, trucks, machine tools, mineral equipment and etc.


BrandCHANNOV
SKUFB090
Base materialCuSn8P0.3/CuSn6.5P0.1
Joint Types of JF Wrapped Bushes
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing

JF dual-metal self lubricating bearings tank shape
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing


Chemical Composition

MaterialCuSn8P0.3CuSn6.5P0.1
Cu91.70%93.40%
Sn8.50%6.50%
P0.20%0.10%
Pb
Zn

Application Characteristics
1. Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2. Compared with lathed bushings and roller bearings, it is lights and more cost-effective.
3. Various holes and dents can be made on the frication surface for grease storage, prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4. Extremely high load sustainability, especially suitable for coarse abrasion surfaces.


Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing

Hot sales
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing
Production Workflow
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing

Certification
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing
Packaging Logostics
Cusn8 Bronze Bush Bearing Manufacturer Fb092 Bronze Sliding Bearing

FAQ
Q1. where is your factory?
A: Our factory is located in Suzhou city, near to Shanghai.

Q2. How can i get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q3. Can I buy samples placing orders?
A: Yes.Please feel free to contact us.

Q4. How about the MOQ?
A: In order to cooperate with customers to develop the market, the initial period is unlimited quality, and after the development is stable, the MOQ is 1000pcs.

Q5.About after sale service?
A: After sales service 24/7.
